Heavy Duty Roll-Off Pup Trailer (TT)

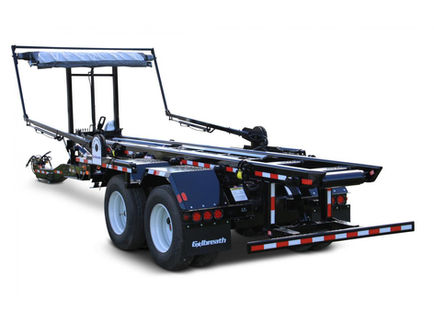

Texas Tongue (TT) roll-off cable hoist trailers are ideal for transporting two container loads safely and effectively. These trailers allow users to haul loads with or without roll-off-ready trucks. The TT is specifically designed to work integrally with Galbreath®’s pintle-ready aprons, which allow for jack-knifing the trailer for over-the-tongue dumping without having to disconnect.
Features:
Jackknife capable - Fabricated T-1 Steel and 10" I-Beam drop style tow bar w/ 3" Bolt On Pintle Lunette
⅞" XIP steel cable / swivel eye cable end 79,600 lbs. test
Hutch single point tandem axle suspension - 50,000 lbs. rating
Hoist main frames are 8" x 4" x ½" A500 Grade - C tubing (rectangular)
Models that can handle containers from 18 ft. up to 22 ft. long
10-Hole Hub Piloted Steel Rims w/ 11R/22.5 Tires -16 Ply & Wheel Check Indicators
ABS braking system
Options include tarping systems, wheels & tires, toolboxes, auto air inflation system, air ride suspension and more
Heavy-Duty Roll-Off Trailers
Galbreath® heavy-duty roll-off trailers are available in various models and configurations. These easy-to-operate trailers stand up to the daily abuse they encounter in scrap, hazardous waste and refuse applications.
Features:
Up to 60,000-lb. hoist capacities and GVWR (outer bridge) from 68k lbs. up to 80k lbs. when properly equipped
Trailer mainframes are 16" up to 22” I-beam
Dual outboard mounted lift cylinders for greater stability
Models that can handle containers from 18 ft. up to 39 ft. long
10-Hole Hub Piloted Steel Rims w/ 11R/22.5 Tires -16 Ply & Wheel Check Indicators
ABS braking system
Options include tarping systems, wheels & tires, toolboxes, auto air inflation system, air ride suspension and more
Heavy-Duty Specialty Roll-Off Trailers
Need to have heavy containers up to 24’ in length moved long distances. Galbreath® has developed the long lasting, heavy duty "Legalizer" series of roll off trailers to meet those demands. These trailers feature a moveable center carriage that allows the user to adjust the load’s center of gravity (COG) to better suit the regional requirements and to limit undue stresses on components when the load is positioned accordingly.
Features:
GWVR outer bridge 80,000 lbs.
Trailer mainframe 22” I-beam
50,000-lb. single-point air ride suspension
25,000-lb. axles
Seven-wire electrical connections with service and emergency air lines with glad hands and hoist-up and backup alarm connection
Air locks for moveable carriage securement
1” pressure line and 1-1/4” return line
Heavy-Duty Specialty Roll-Off Trailers
Need to have heavy containers up to 24’ in length moved long distances. Galbreath® has developed the long lasting, heavy duty "Legalizer" series of roll off trailers to meet those demands. These trailers feature a moveable center carriage that allows the user to adjust the load’s center of gravity (COG) to better suit the regional requirements and to limit undue stresses on components when the load is positioned accordingly.
Features:
GWVR outer bridge 80,000 lbs.
Trailer mainframe 22” I-beam
50,000-lb. single-point air ride suspension
25,000-lb. axles
Seven-wire electrical connections with service and emergency air lines with glad hands and hoist-up and backup alarm connection
Air locks for moveable carriage securement
1” pressure line and 1-1/4” return line
Heavy-Duty Specialty Roll-Off Trailers
Need to have heavy containers up to 24’ in length moved long distances. Galbreath® has developed the long lasting, heavy duty "Legalizer" series of roll off trailers to meet those demands. These trailers feature a moveable center carriage that allows the user to adjust the load’s center of gravity (COG) to better suit the regional requirements and to limit undue stresses on components when the load is positioned accordingly.
Features:
GWVR outer bridge 80,000 lbs.
Trailer mainframe 22” I-beam
50,000-lb. single-point air ride suspension
25,000-lb. axles
Seven-wire electrical connections with service and emergency air lines with glad hands and hoist-up and backup alarm connection
Air locks for moveable carriage securement
1” pressure line and 1-1/4” return line
Heavy-Duty Specialty Roll-Off Trailers
Need to have heavy containers up to 24’ in length moved long distances. Galbreath® has developed the long lasting, heavy duty "Legalizer" series of roll off trailers to meet those demands. These trailers feature a moveable center carriage that allows the user to adjust the load’s center of gravity (COG) to better suit the regional requirements and to limit undue stresses on components when the load is positioned accordingly.
Features:
GWVR outer bridge 80,000 lbs.
Trailer mainframe 22” I-beam
50,000-lb. single-point air ride suspension
25,000-lb. axles
Seven-wire electrical connections with service and emergency air lines with glad hands and hoist-up and backup alarm connection
Air locks for moveable carriage securement
1” pressure line and 1-1/4” return line
Heavy-Duty Specialty Roll-Off Trailers
Need to have heavy containers up to 24’ in length moved long distances. Galbreath® has developed the long lasting, heavy duty "Legalizer" series of roll off trailers to meet those demands. These trailers feature a moveable center carriage that allows the user to adjust the load’s center of gravity (COG) to better suit the regional requirements and to limit undue stresses on components when the load is positioned accordingly.
Features:
GWVR outer bridge 80,000 lbs.
Trailer mainframe 22” I-beam
50,000-lb. single-point air ride suspension
25,000-lb. axles
Seven-wire electrical connections with service and emergency air lines with glad hands and hoist-up and backup alarm connection
Air locks for moveable carriage securement
1” pressure line and 1-1/4” return line
Heavy-Duty Specialty Roll-Off Trailers
Need to have heavy containers up to 24’ in length moved long distances. Galbreath® has developed the long lasting, heavy duty "Legalizer" series of roll off trailers to meet those demands. These trailers feature a moveable center carriage that allows the user to adjust the load’s center of gravity (COG) to better suit the regional requirements and to limit undue stresses on components when the load is positioned accordingly.
Features:
GWVR outer bridge 80,000 lbs.
Trailer mainframe 22” I-beam
50,000-lb. single-point air ride suspension
25,000-lb. axles
Seven-wire electrical connections with service and emergency air lines with glad hands and hoist-up and backup alarm connection
Air locks for moveable carriage securement
1” pressure line and 1-1/4” return line
